High Pressure Coolant Systems

MC-22V

Features:

■ Special costs saving system (Patented high-performance & low-cost of consumables filtration system.)
■ Energy saving about 40%.
■ Using M code to set up multiple pressures.
■ HMI as standard.
■ Customized design for Swiss turning lathe.
■ Ideal for gun drilling and cannulation applications.

Specifications

Fluid typeOil base coolant (viscosity 15-32cst)
Control panelHMI Screen
Max working pressure140 Bar / 2000 PSI
Max flow rate22 Liter/min
Number of ports4 (Standard)
Filtration5µ (Filter Bag)
Tank capacity83 Liter

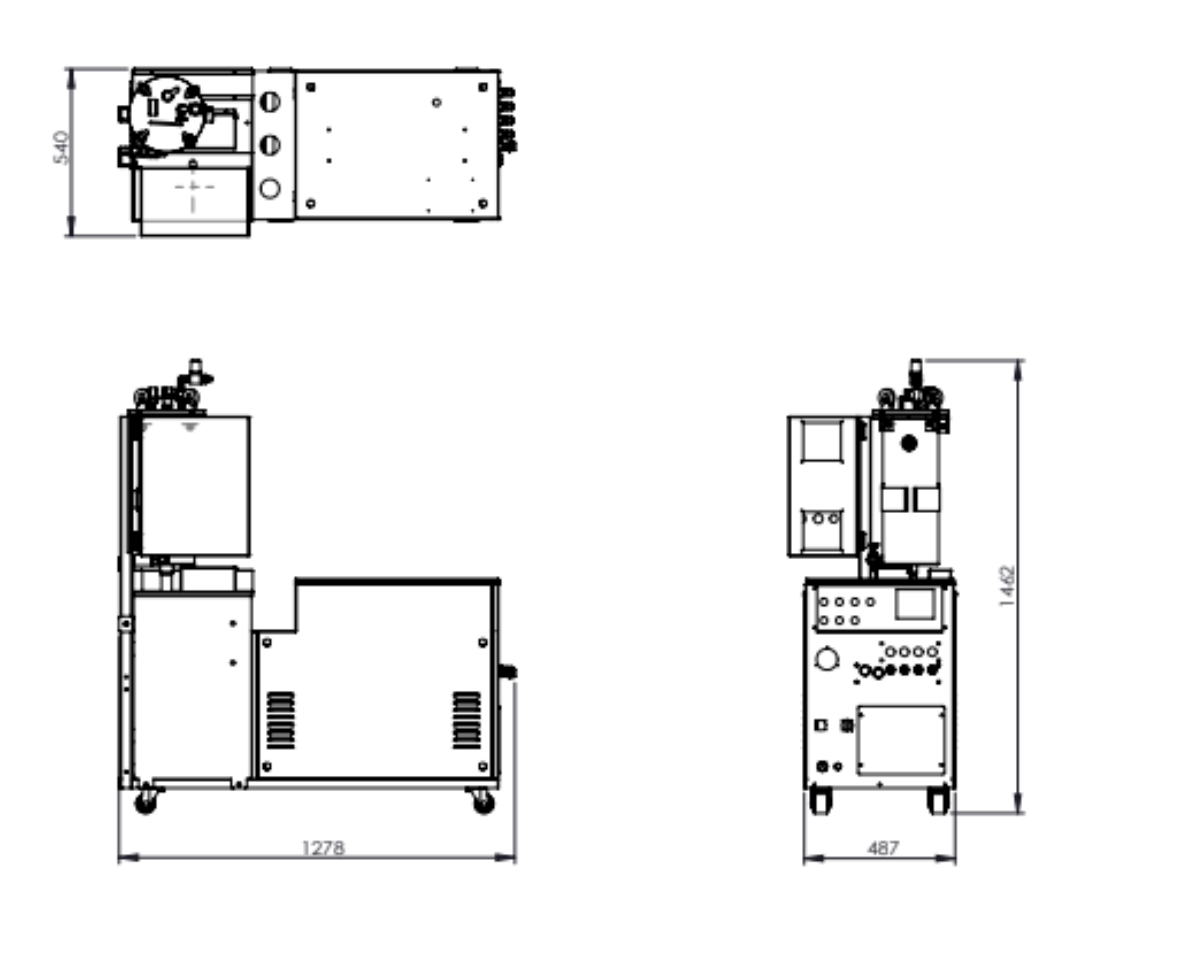

Dimension (D*W*H)1456 x 690 x 1348 mm
Weight274 kg
