May be used individually for different applications.
Countless variations with the combination of various fixtures.
Models
B-1052200
B-1252200

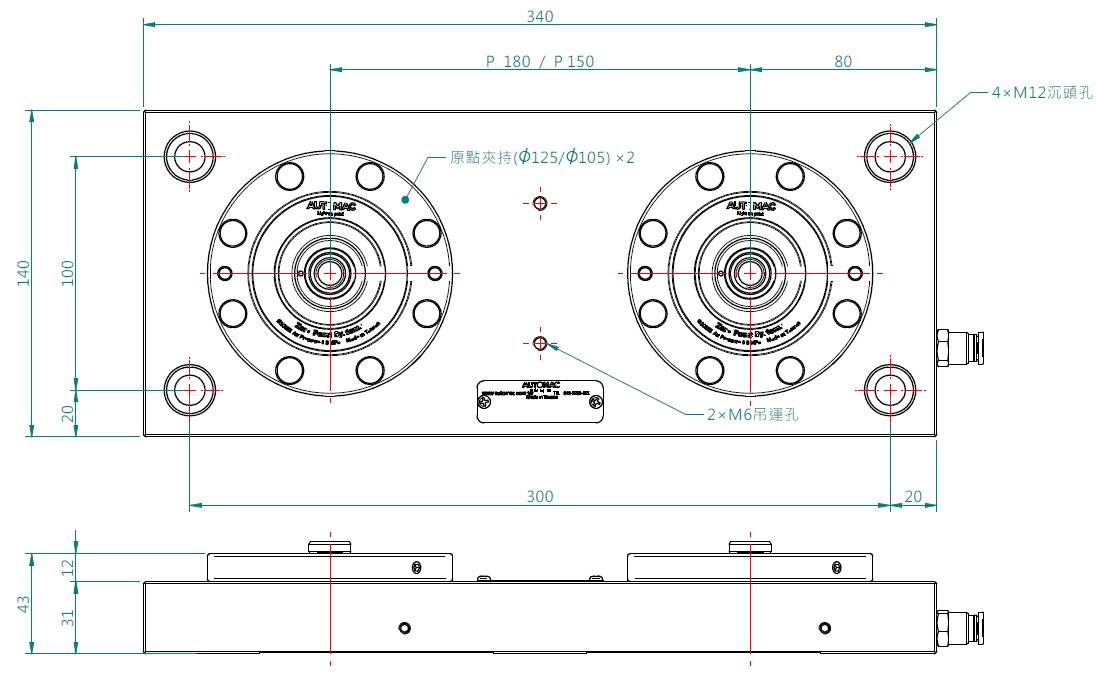

Specifications
B-1052200 Spacing 150mm
B-1252200 Spacing 180mm
Zero Point Clamp 2 sets
Repeatability：0.005mm
Clamping Force：10kN
T Slots Distance：100mm (Customized available)
Screw Spec：M12 (Suits 14-18mm T Slots)
Pipe ø：8mm
Functions
Zero Point Positioning
Rapid Clamping
Precision Cross Keyways
Steel Balls for Chip Prevention
Applicable in both Vertical/Horizontal Machining

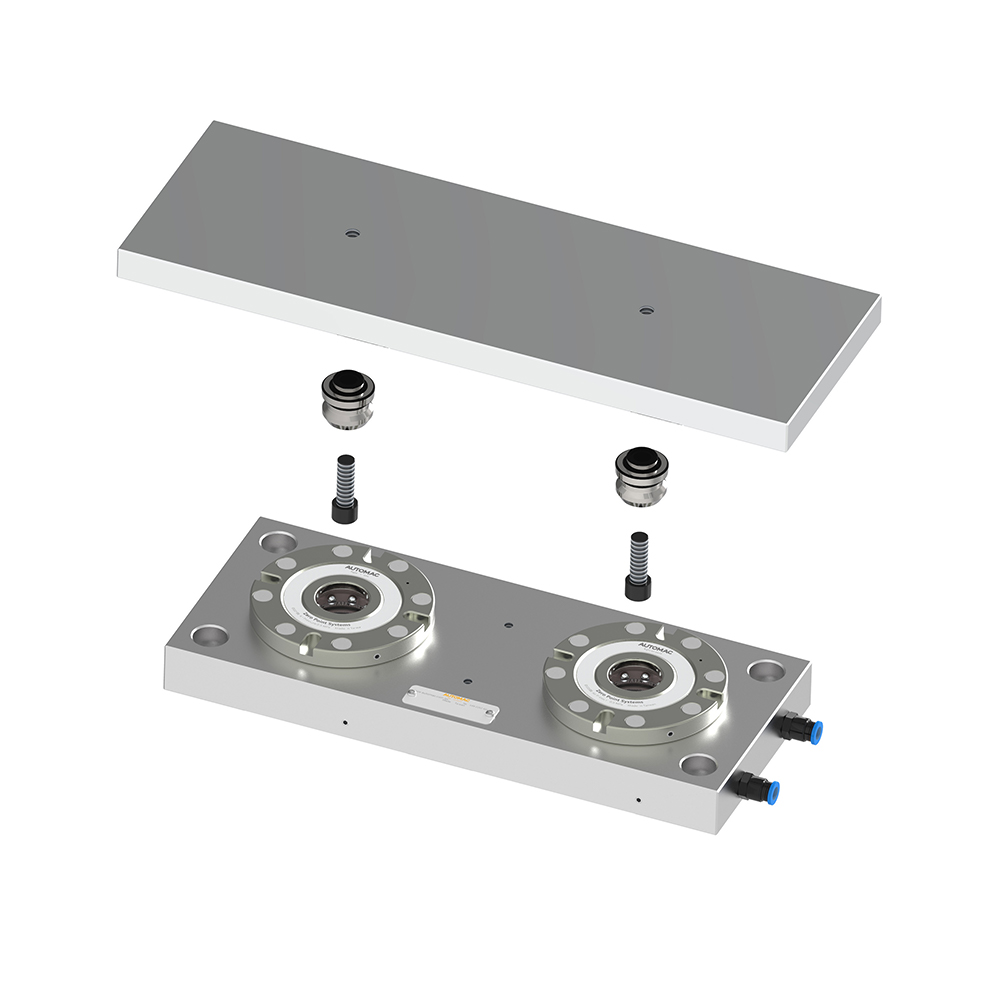

Standard Accessories
Special Pull Studs X 2
M12 Screws X 2
One-touch Fittings ø8 X 2
Optional Accessories
Operation Valve Piping Set
T-slot Nuts (for 14-18mm T Slot)
Standard-sized Aluminum Fixture Plate (L360xW160xD20mm)
Fool-proof Pin
Chip Prevention Cover
Precision Positioning Key

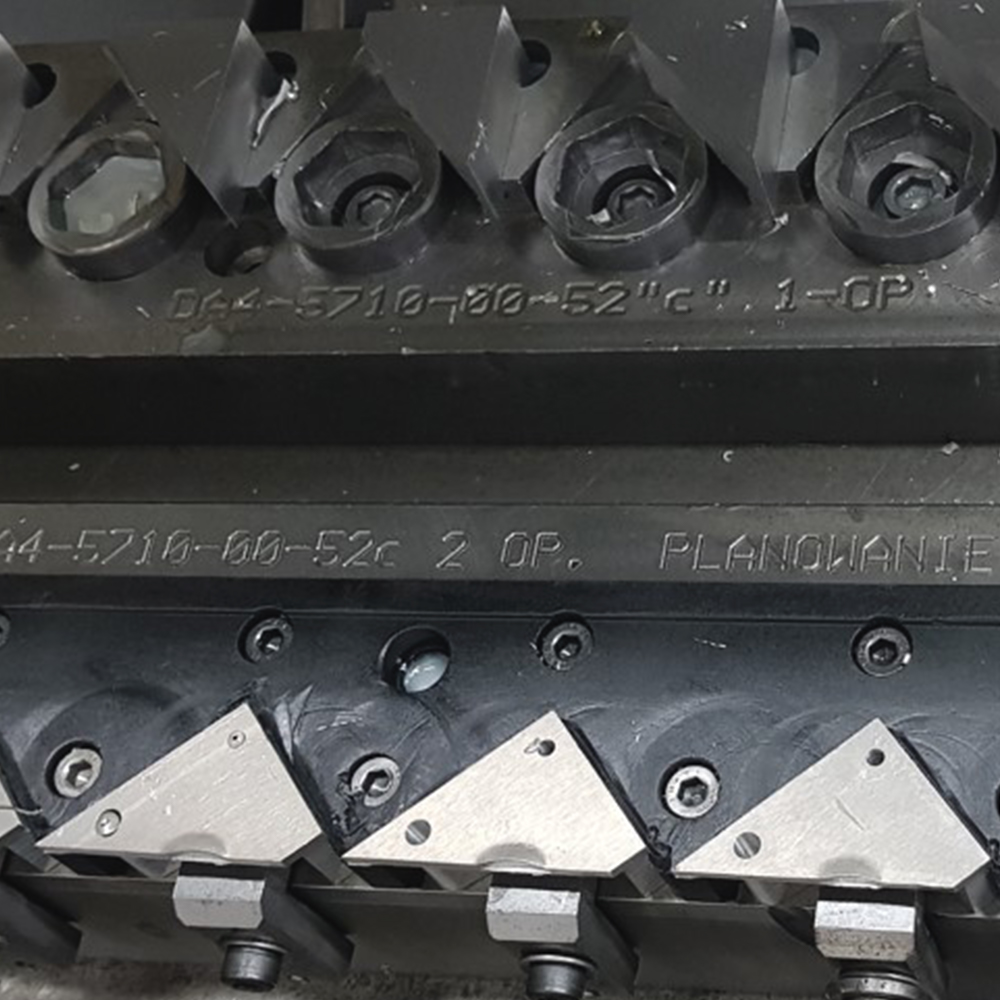

On-site installation
Features
Fast Installation
Fool-proof Design
Slick Exterior
Strengthened Clamping Force
Easy loading/unloading
Strict Safety Considerations
0.5 Mpa pneumatic pressure meeting international eco standards
