Affordable prices to suit your requirements.
Best choice for entry-level applications.
Models
B-1051400
B-1251400
Specifications

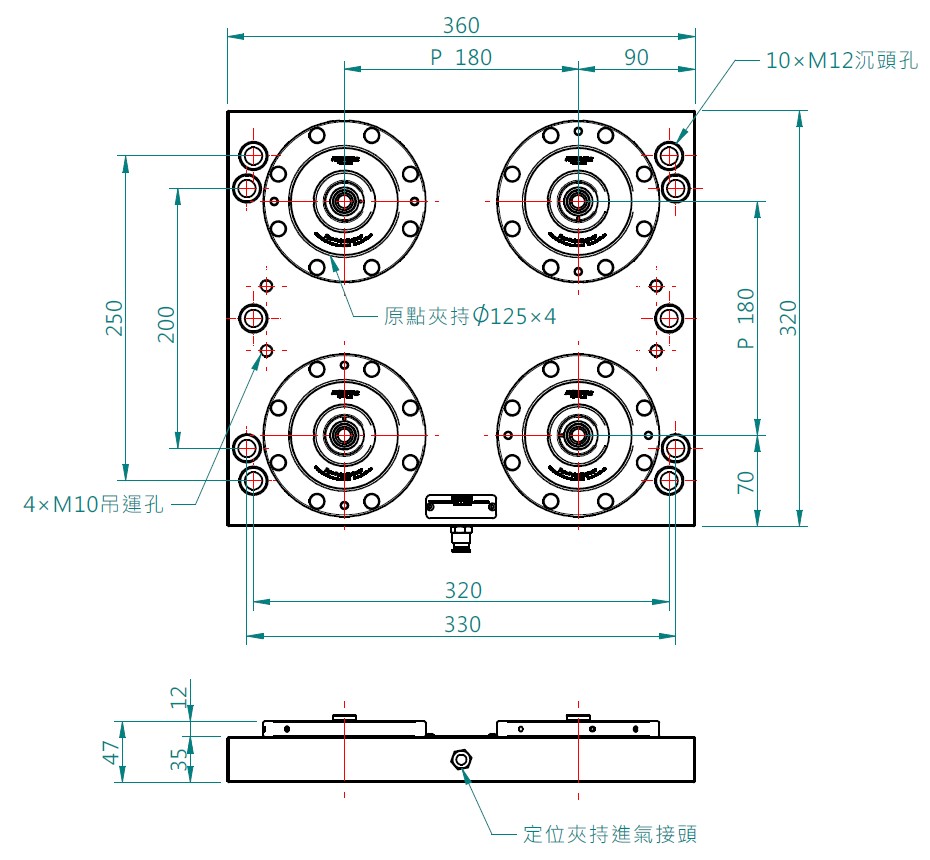

B-1051400 Spacing 150mm
B-1251400 Spacing 180mm
Zero Point Clamp 4 sets
Repeatability：0.005mm
Clamping Force：10kN
T Slots Distance：100mm (Customized available)
Screw Spec：M12 (Suits 14-18mm T Slots)
Pipe ø：8mm
Functions
Zero Point Positioning
Rapid Clamping
Vertical/Horizontal
Standard Accessories
Special Pull Studs X 2
M12 Screws X 4
One-touch Fittings ø8 X 1
Optional Accessories
Operation Valve Piping Set
T-slot Nuts (for 14-18mm T Slot)
Standard-sized Aluminum Fixture Plate (L360xW160xD20mm)
Fool-proof Pin
Chip Prevention Cover
On-site installation
Features
Fast Installation
Fool-proof Design
Slick Exterior Style
Strengthened Clamping Force
Easy loading/unloading
Strict Safety Considerations
0.5 Mpa pneumatic pressure meeting international eco standards
