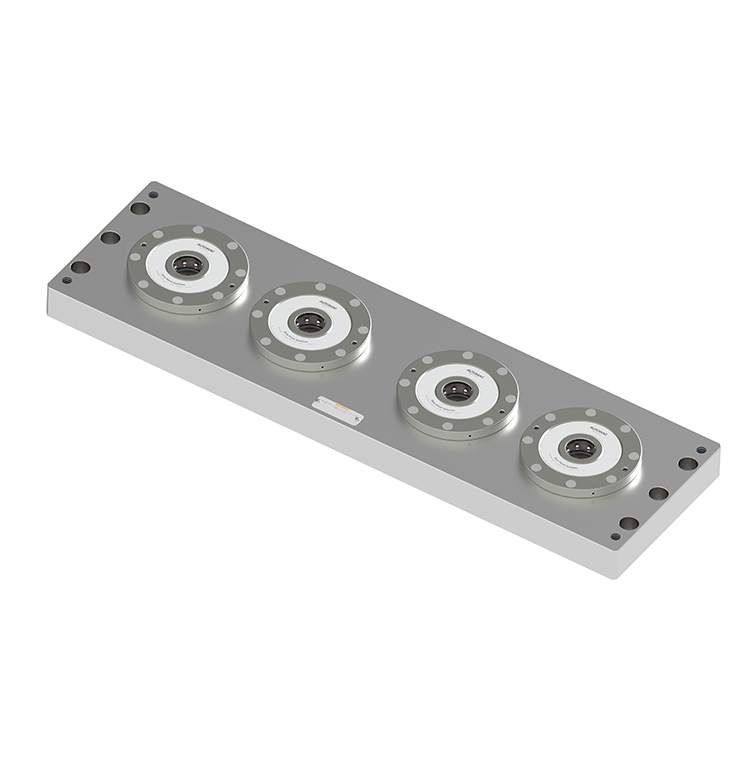

Multi-face machining. Your best choice to increase productivity.
Models
P-1251200 (L500XW200XD40mm)
P-1251400 (L700XW200XD45mm)
P-1251401 (L800XW200XD45mm)
Specifications
P-1251200 Center Spacing 180mm
P-1251400/1 Center Spacing 150mm
Zero Point Clamp
2 sets ( P-1251200)
4 sets (P-1251400/1)
Repeatability：0.005mm
Clamping Force：10kN
Fixing Screws Spacing：55mm X 2 (may be customized)
Screw Spec：M12 (may be customized)
Pipe ø：4mm
Functions
Zero Point Positioning
Rapid Clamping
May be used at any angle
Standard Accessories
Special Pull Studs X 4 (2 for P-1251200)
M12 Screws X 6
One-touch Fittings ø4 X 1
Optional Accessories
Operation Valve Piping Kit
Standard-sized Aluminum Fixture Plate (L280xW185xD20mm)
Fool-proof Pin
Chip Prevention Cover
On-site installation
Features
Fast Installation
Fool-proof Design
Slick Exterior Style
Strengthened Clamping Force
Easy loading/unloading
Strict Safety Considerations
0.5 Mpa pneumatic pressure meeting international eco standards
