Save valuable setting time when replacing the fixtures.
Models
R-1252400
Specifications

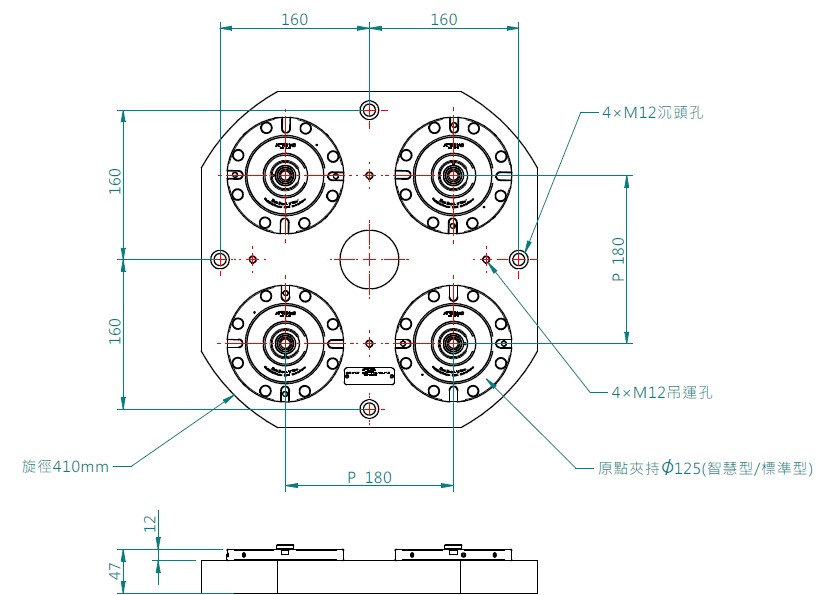

Center Spacing: 180mm
Repeatability：0.005mm
Clamping Force：10kN
Screw Spec：M10 (may be used for T slots between 12-18mm)
Pneumatic outlets：ø4.1mm X 3 (PCD customized)
Standard Plate Size：ø410X47mm
Functions
Zero Point Positioning
Rapid Clamping
Precision Cross Keyways
Steel Balls with Air Curtain for Chip Prevention
May be used at any angle
Standard Accessories
Special Pull Studs X 4
M10 Screws X 4
ø4.1mm Pneumatic Fixtures Interface with rotary joint units.
Optional Accessories
Operation Valve Piping Kit
T-slot Nuts (for 14-18mm T Slot)
Standard-sized Steel Fixture Plate (ø410X25mm)
Chip Prevention Cover
Precision Positioning Pin
On-site installation
Features
Fast Installation
Fool-proof Design
Slick Exterior
Strengthened Clamping Force
Easy loading/unloading
Strict Safety Considerations
0.5 Mpa pneumatic pressure meeting international eco standards
