Different spec center vises can be rapidly interchanged with the same center position.
Models
R-1252100
Specifications
ø125 Standard Type (single unit with swing under 300mm)
Zero Clamp System X1
Repeatability： 0.005mm
Clamping Force：10kN
Screw Spec：M10 (May be used with T Slots betwee 12-18mm)
Pneumatic outlets：ø4.1mm X 3 (PCD customized)

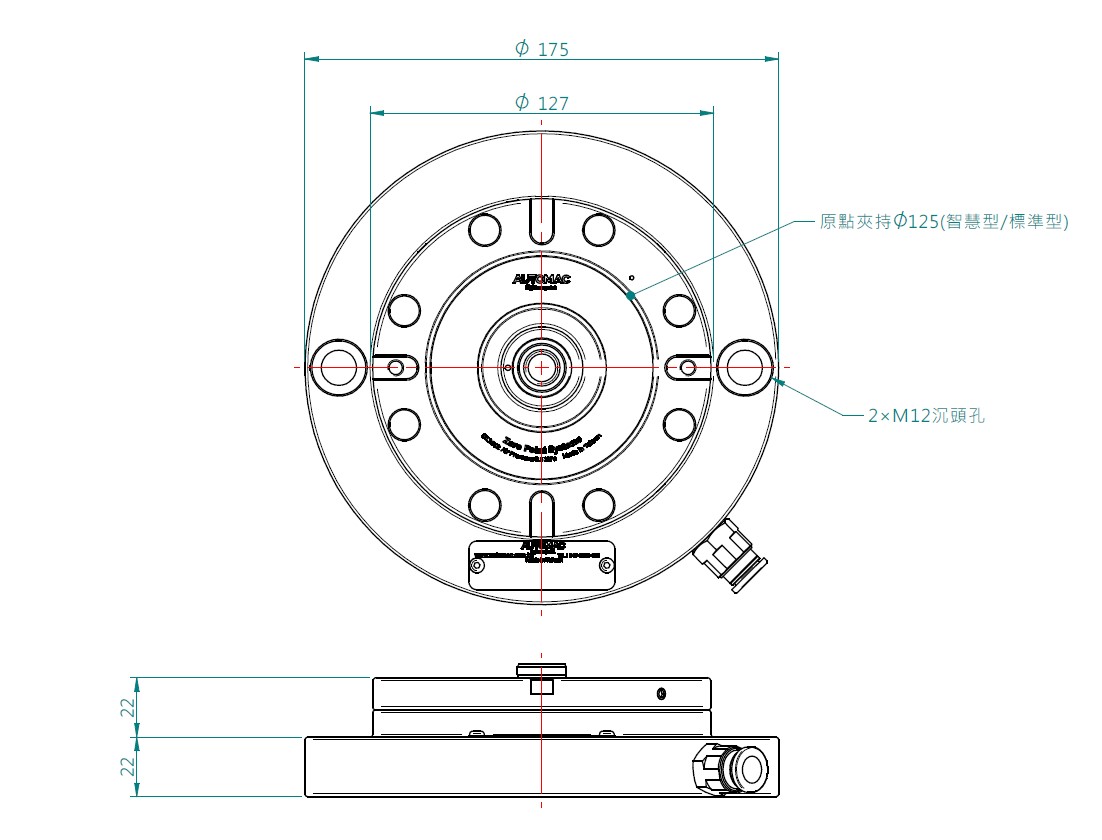

Standard Size：ø175X44mm
Functions
Zero Point Positioning
Rapid Clamping
Precision Cross Keyways
Steel Balls with Air Curtain for Chip Prevention
May be used at any angle

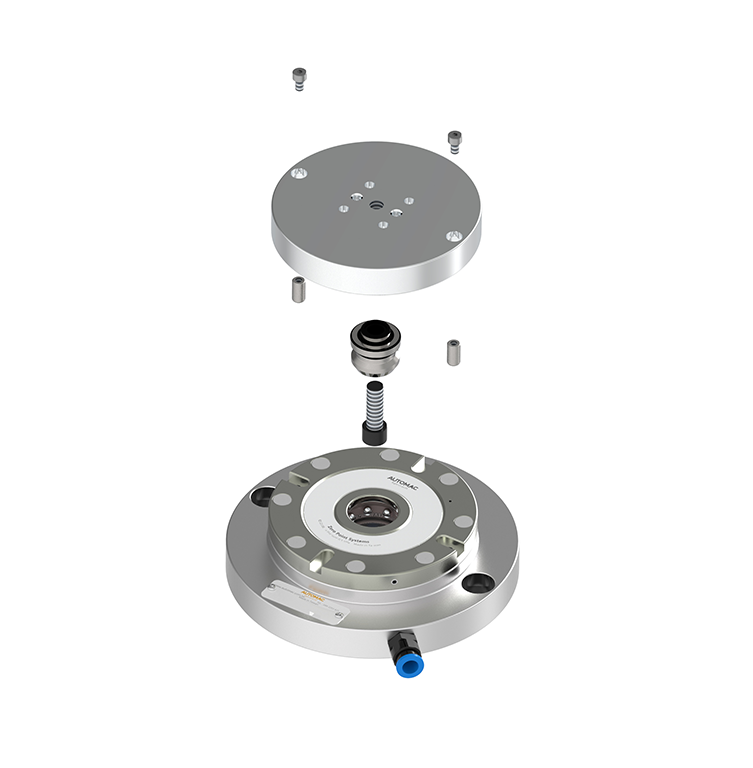

Standard Accessories
Special Pull Studs X 1
M10 Screws X 2
ø4.1mm Pneumatic Fixtures Interface with rotary joint units.
Optional Accessories
Operation Valve Piping Kit
T-slot Nuts (for 14-18mm T Slot)
Standard-sized Steel Fixture Plate (ø410X25mm)
Chip Prevention Cover
Precision Positioning Pin
On-site installation
Features
Fast Installation
Fool-proof Design
Slick Exterior
Strengthened Clamping Force
Easy loading/unloading
Strict Safety Considerations
0.5 Mpa pneumatic pressure meeting international eco standards
