Switching operation efficiently by using the same fixtures and plates.
Models

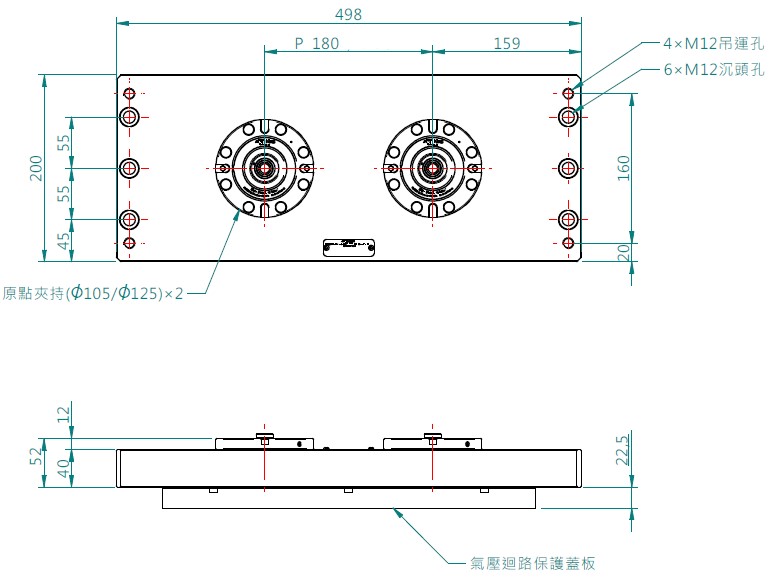

P-1251200 (L500XW200XD40mm)

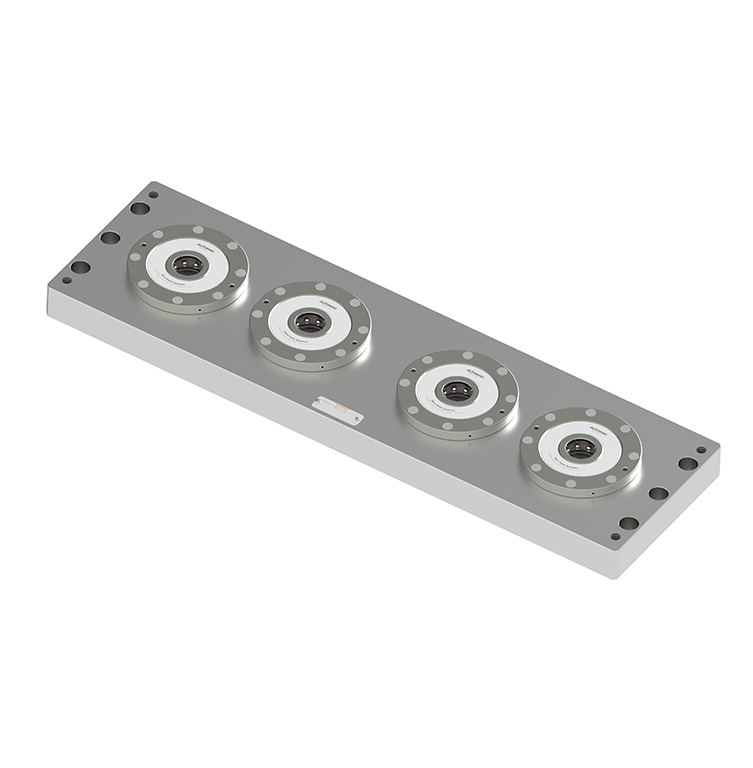

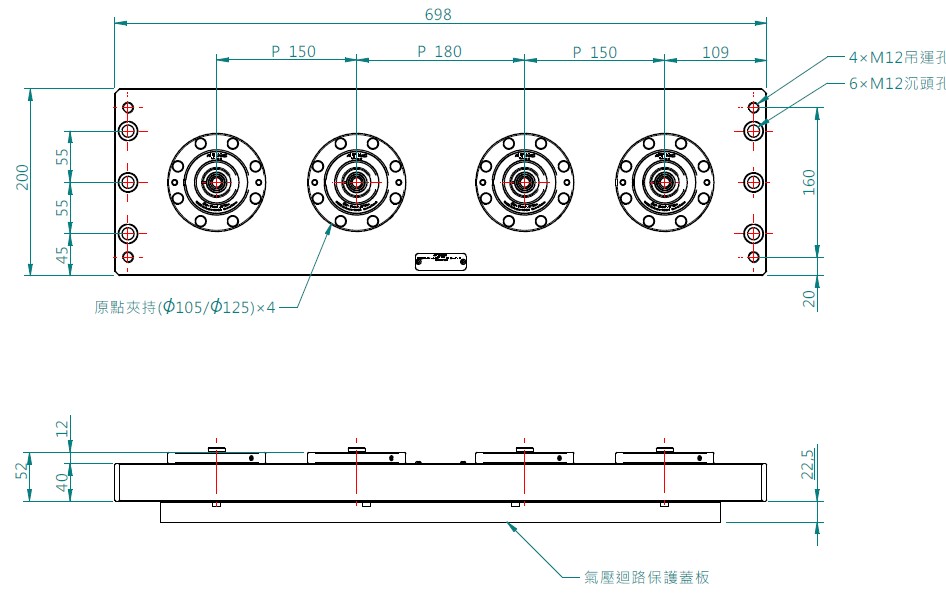

P-1251400 (L700XW200XD45mm)

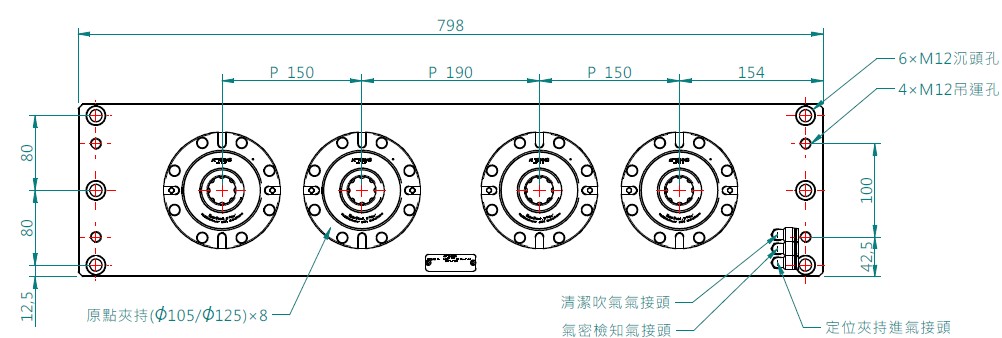

P-1251401 (L800XW200XD45mm)
Specifications
P-1251200 Center Spacing 180mm
P-1251400/1 Center Spacing 150mm
Zero Point Clamp
2 sets ( P-1251200)
4 sets (P-1251400/1)
Repeatability：0.005mm
Clamping Force：10kN
Fixing Screws Spacing：55mm X 2 (may be customized)
Screw Spec：M12 (may be customized)
Pipe ø：4mm
Functions
Zero Point Positioning
Rapid Clamping
Precision Cross Keyways
Steel Balls with Air Curtain for Chip Prevention
May be used at any angle
Standard Accessories

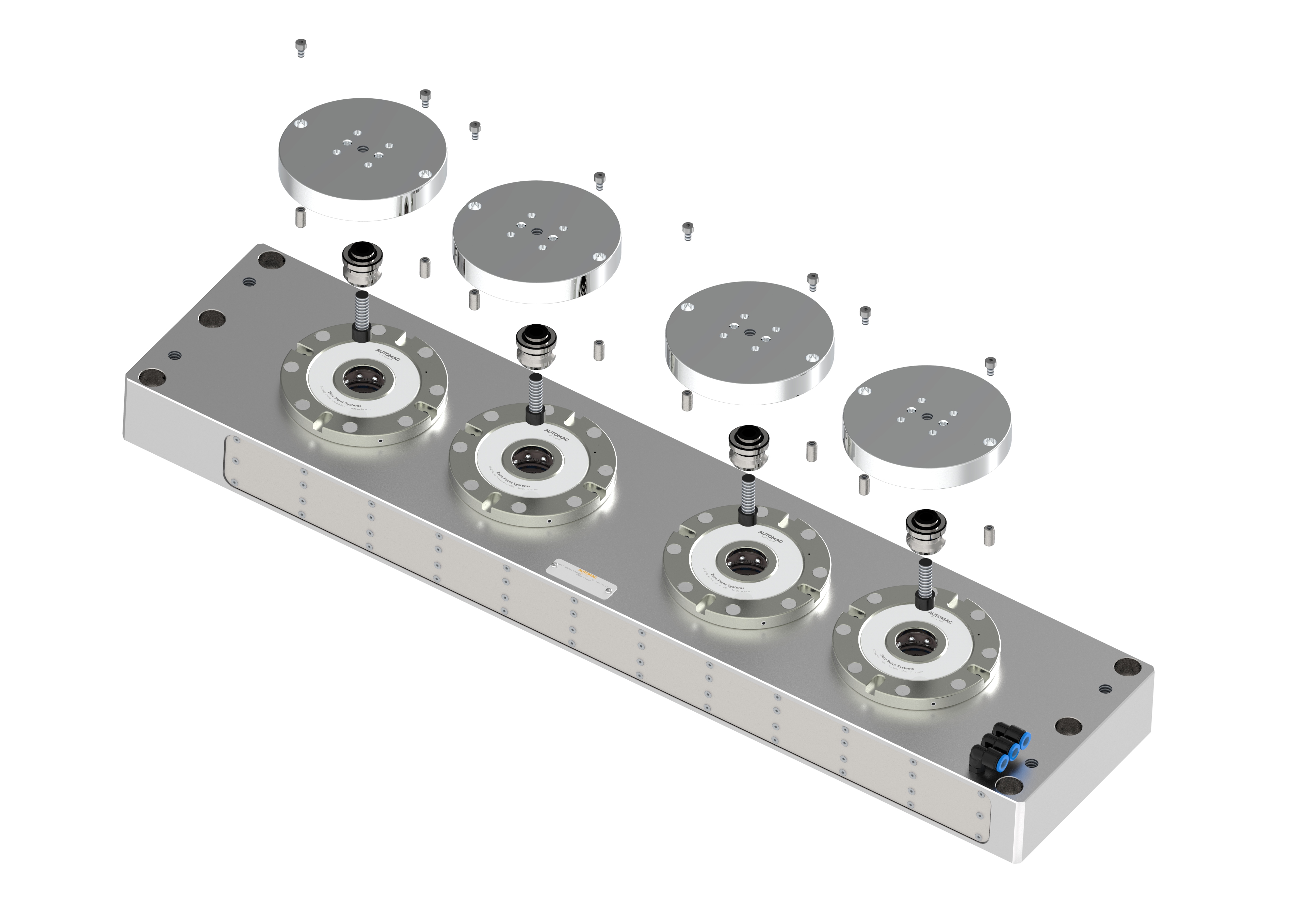

Special Pull Studs X 4 (2 for P-1251200)
M12 Screws X 6
One-touch Fittings ø4 X 1
Optional Accessories
Operation Valve Piping Kit
Standard-sized Aluminum Fixture Plate (L280xW185xD20mm)
Fool-proof Pin
Chip Prevention Cover
Precision Positioning Pin

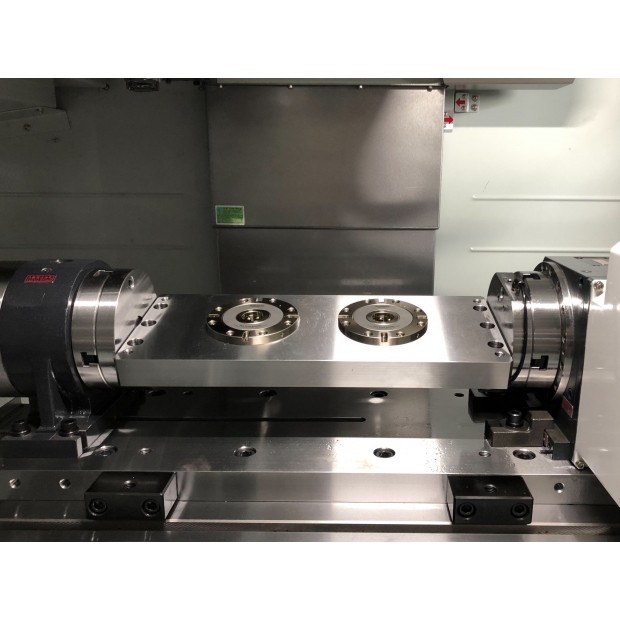

On-site installation
Features
Fast Installation
Fool-proof Design
Slick Exterior Style
Strengthened Clamping Force
Easy loading/unloading
Strict Safety Considerations
0.5 Mpa pneumatic pressure meeting international eco standards
