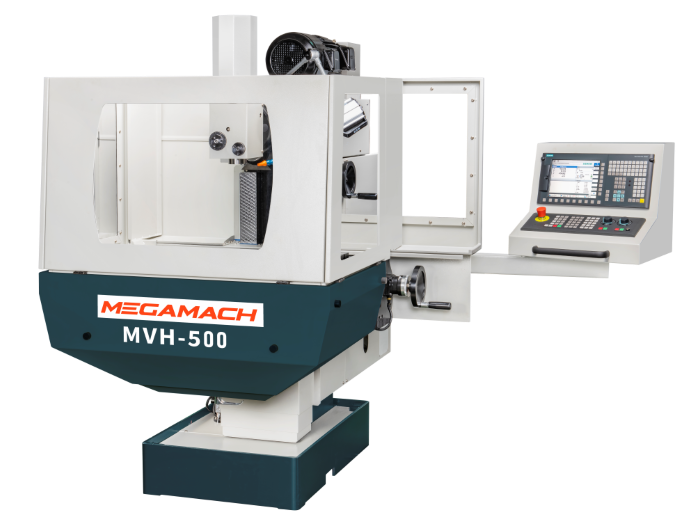

Universal milling machine with Siemens 828D control.
CNC and Manual modes can be switched by pressing a button.
Hi-low gear speed change to provide most adequate cutting results.
5HP horizontal gear-driven spindle for splendid torque output.
All guideways are hand scrapped for high precision and reliability!
| MACHINE MODEL | MVH-500 |
| Travel | |
| X/Y/Z travel | 500/350/381 mm |
| Vertical Spindle Nose to Table Surface | 60.5 - 441.5 mm |
| Vertical Spindle Center to Column Surface | 189 - 539 mm |
| Horizontal Spindle to Table Surface | 103 - 484 mm |
| Horizontal Spindle Nose to Column Surface | 37 - 387 mm |
| Spindle | |
| Spindle Taper | SK - 40 |
| Spindle speed | Hi: 510 - 4020 rpm Lo: 65 - 515 rpm |
| Transmission | Belt + Gear |
| Feed Rate | |
| X/Y/Z Rapid Traverse | 5/5/2 M/Min. |
| Cutting Feed Rate | X and Y: 1- 5 M/Min Z: 1 - 2 M/Min. |
| Rapid feed- X/Z axis | 12/24 |
| Turret | |
| Type | Servo/Power |
| Number of tool stations | 8 pcs |
| Tool shank size | 32*32/Ø50 mm |
| Motor | |
| Main spindle motor power | 5 Hp |
| Spindle Inverter | 7.5 Hp |
| X/Y Axis Motor | 1.5 Kw |
| Z Axis Motor | 2.3Kw with Brake |
| Coolant Pump | 1/6 Hp |
| Utility | |
| Hydraulic Pressure | Max. 50Kg/Cm2 |
| Lube Pump Pressure | Max 15Kg/Cm2 |
| Machine Dimensions | 2345 x 1955 x 1830mm |
| Machine Net Weight | 1300 kgs |
